Swing Check Valve
Flanged swing check valve that lets flow pass freely and swings shut on reversal, in IC 304 / 316 or WCB from 25 mm to 100 mm.
- Nominal size
- 25 mm to 100 mm
- Pressure
- As per class
- Body
- IC 304 / 316 / WCB
- Ends
- Flange end
| Valve type | Swing check type |
|---|---|
| End connection | Flange end |
| Nominal size | 25 mm to 100 mm |
| Pressure class | As per class |
| Body MOC | IC 304 / 316 / WCB |
| Cover | IC 304 / 316 / WCB |
| Seat and disc | IC 304 / 316 / WCB |
| Operation | Lever |
| Typical applications | Oil, Gas, Steam, Process lines |
Specifications describe our standard range. Send your duty conditions for a confirmed offer with test certificates.
Key features
Low pressure drop
The hinged disc swings clear of the flow path when open.
Automatic non-return
Closes on flow reversal to protect pumps and equipment from backflow.
Bolted cover
Bolted top cover gives access to the disc and seat for inspection.

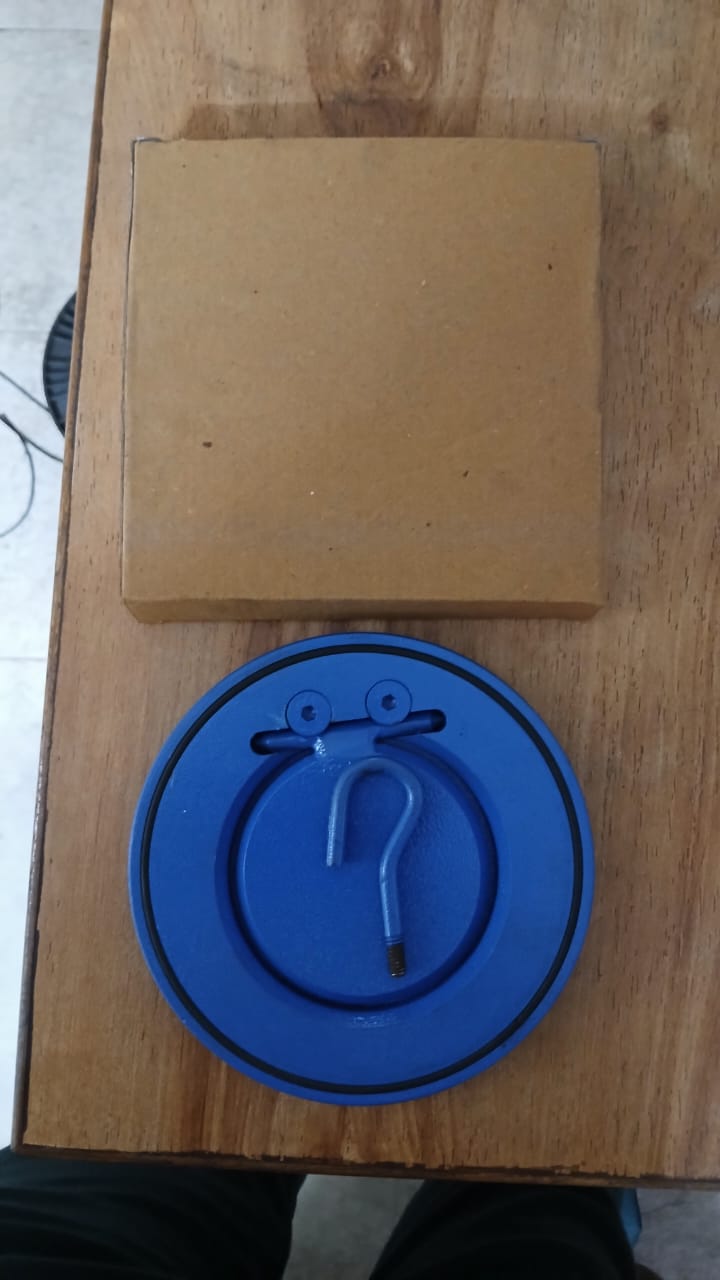

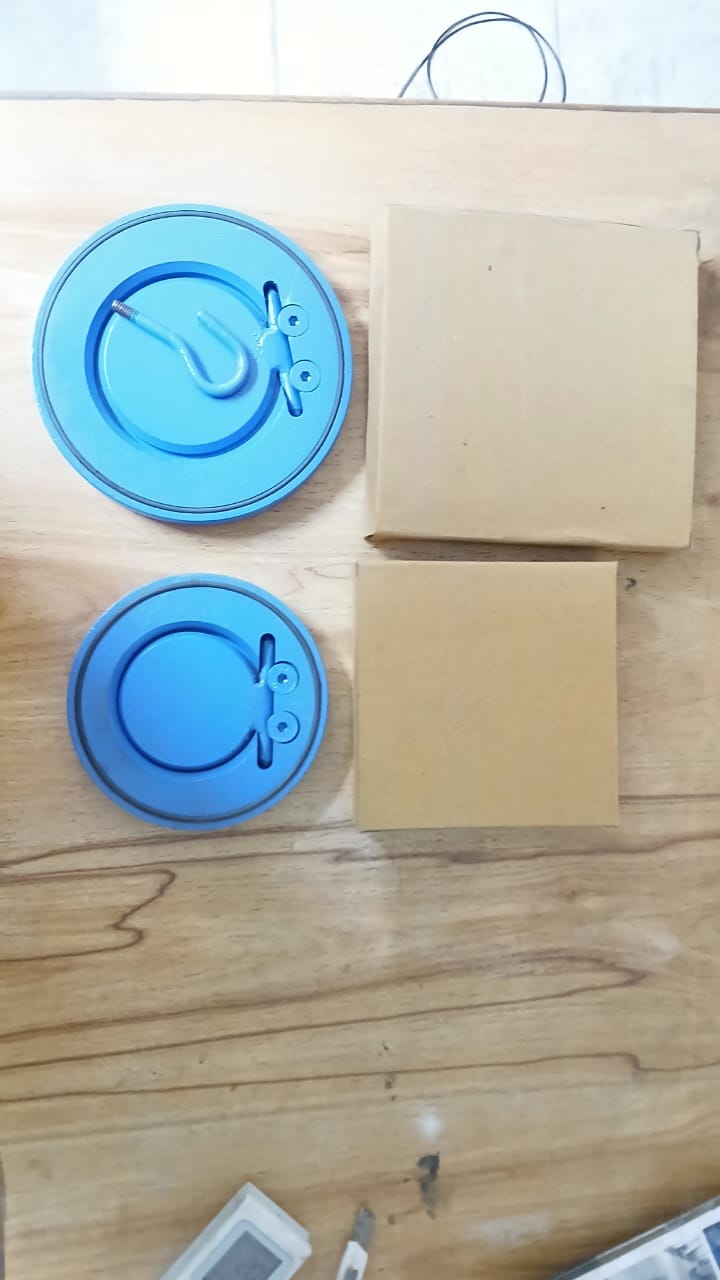

Product gallery
