Globe ValveFlanged
Hand-wheel operated, metal-seated globe valve to BS 1873, built for throttling and pressure-control service in sizes from 25 mm to 250 mm.
- Nominal size
- 25 mm to 250 mm
- Pressure
- ASA 150 / 300
- Body
- WCB / I.C. 304 / 316
- Ends
- Flanged
| Valve type | Globe valve |
|---|---|
| End connection | Flanged |
| Nominal size | 25 mm to 250 mm |
| Pressure class | ASA 150 / 300 |
| Design standard | BS 1873 |
| Body MOC | WCB / I.C. 304 / 316 |
| Plug MOC | WCB / SS 304 / 316 |
| Seat type | Metal seated |
| Operation | Hand wheel |
| Typical applications | Throttling, Pressure control service |
Specifications describe our standard range. Send your duty conditions for a confirmed offer with test certificates.
Key features
Made for throttling
The plug moves square to the seat, giving fine, stable control of flow and pressure.
Metal seated
Metal-to-metal plug and seat for steam, hot and demanding process service.
BS 1873 design
Designed to BS 1873 with flanged ends rated ASA 150 / 300.

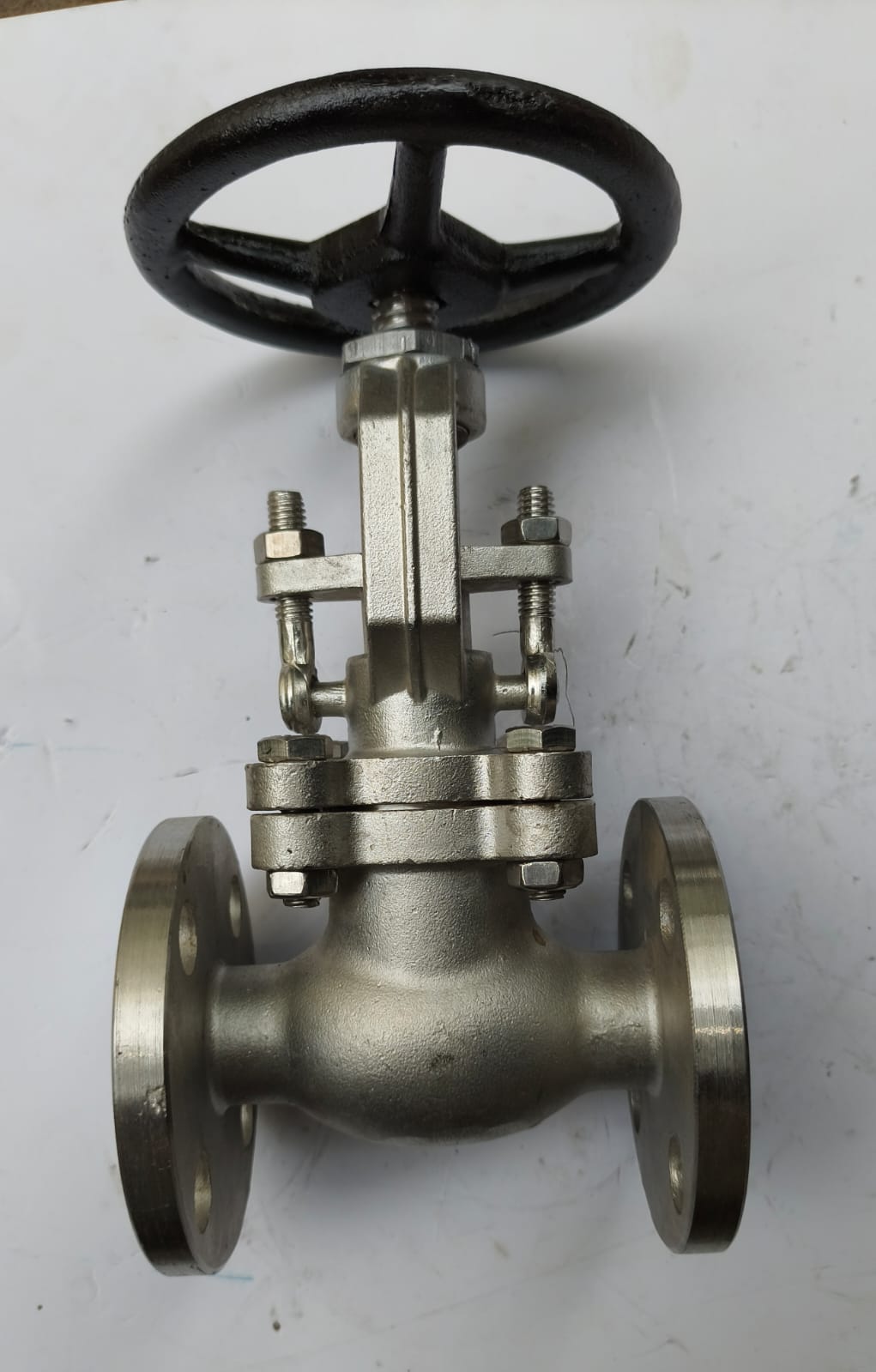

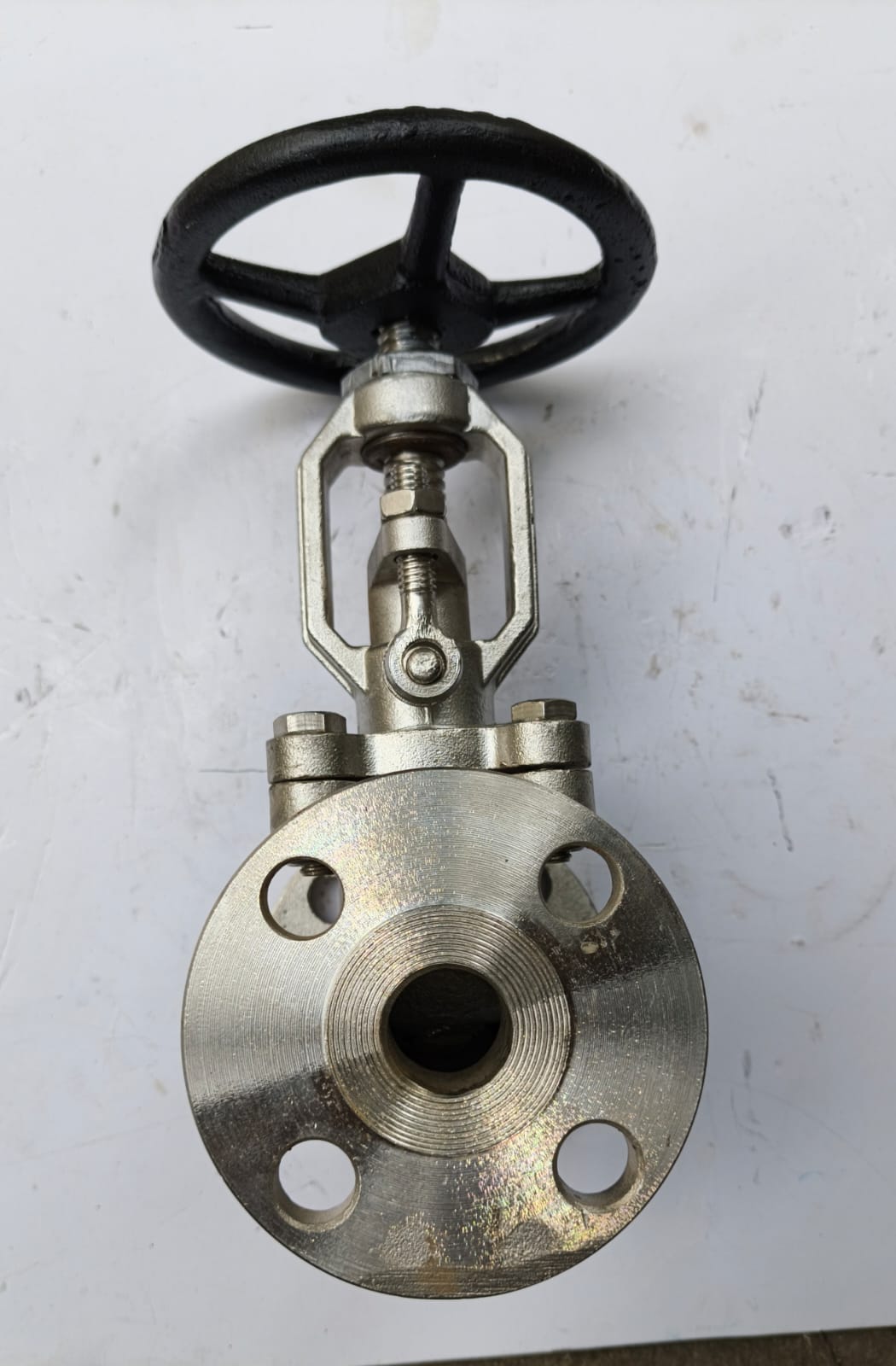

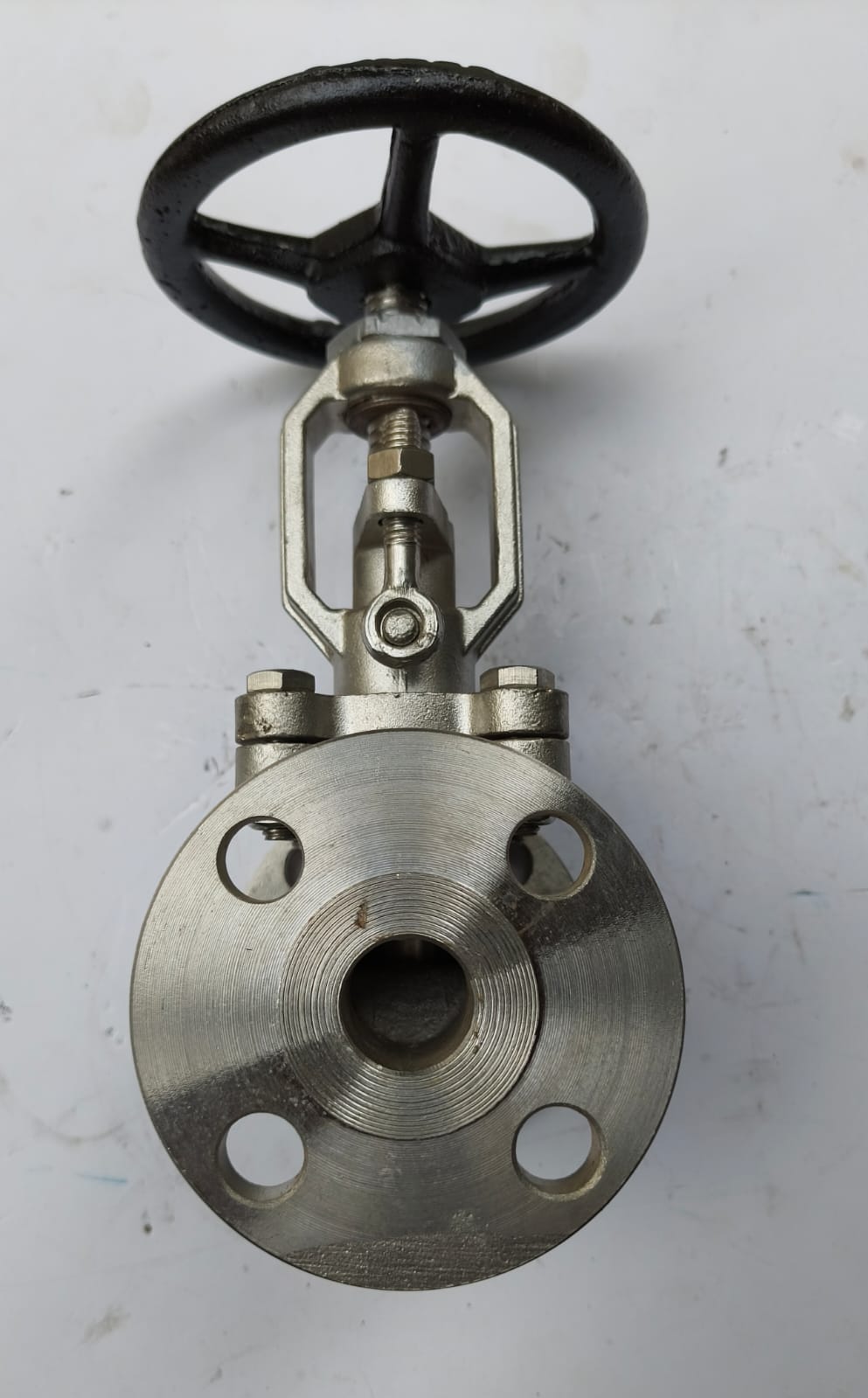

Product gallery
