Gate Valve

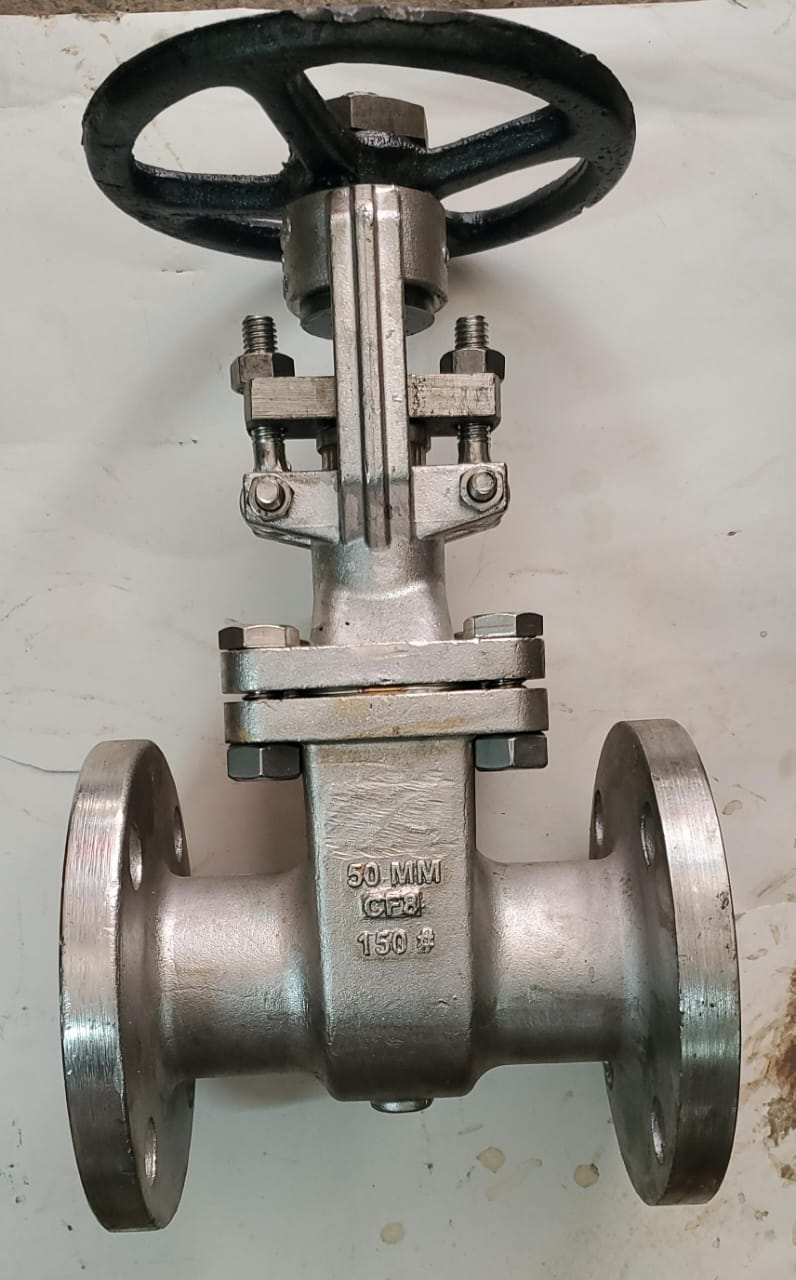

Flanged gate valve to API 600 with metal-to-metal seating, the full-bore choice for isolation and on/off duty from 25 mm to 250 mm.
- Nominal size
- 25 mm to 250 mm
- Pressure
- ASA 150 / 300
- Body
- WCB / I.C. 304 / 316
- Ends
- Flanged
| Valve type | Gate valve |
|---|---|
| End connection | Flanged |
| Nominal size | 25 mm to 250 mm |
| Pressure class | ASA 150 / 300 |
| Design standard | API 600 |
| Body MOC | WCB / I.C. 304 / 316 |
| Plug MOC | WCB / SS 304 / 316 |
| Seat type | Metal to metal |
| Operation | Hand wheel |
| Typical applications | Isolation service, On/off duty |
Specifications describe our standard range. Send your duty conditions for a confirmed offer with test certificates.
Key features
Isolation duty
Fully open or fully closed: a straight-through bore when open for low pressure drop.
Metal-to-metal seating
Hard-wearing metal seats for steam, hot and process service.
API 600 design
Designed to API 600 with flanged ends rated ASA 150 / 300.
