Lever-operated, quarter-turn isolation with PTFE seats and a stainless ball and stem. Five body types with screwed or flanged ends, from 8 mm to 200 mm.

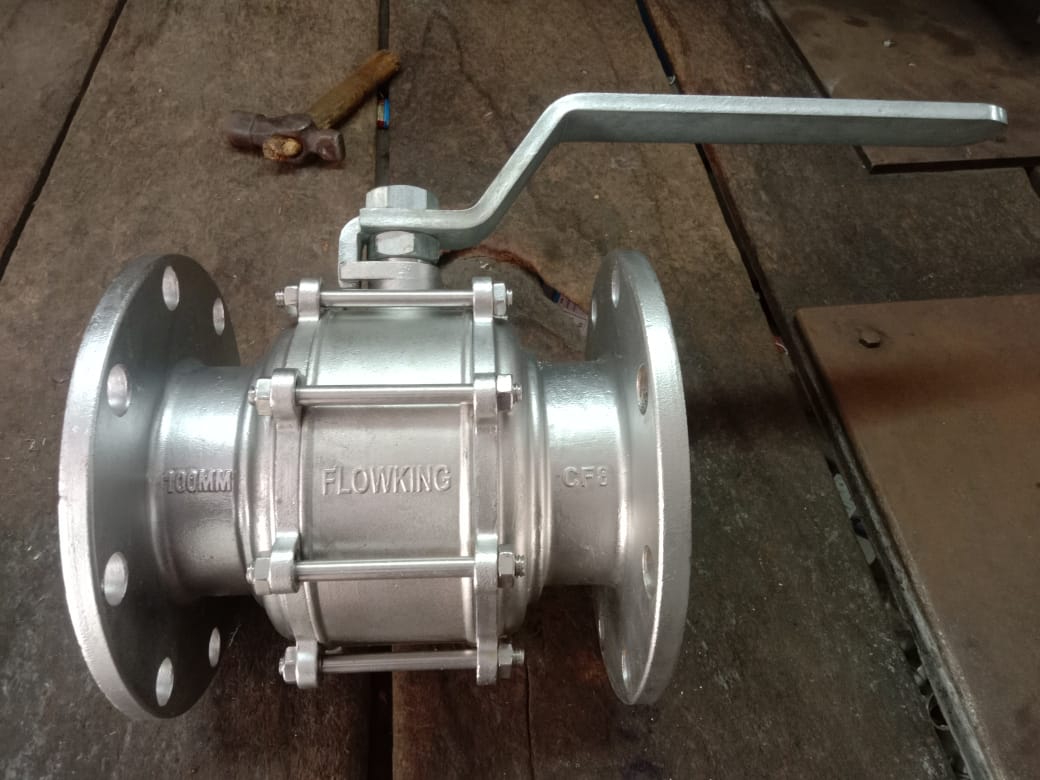

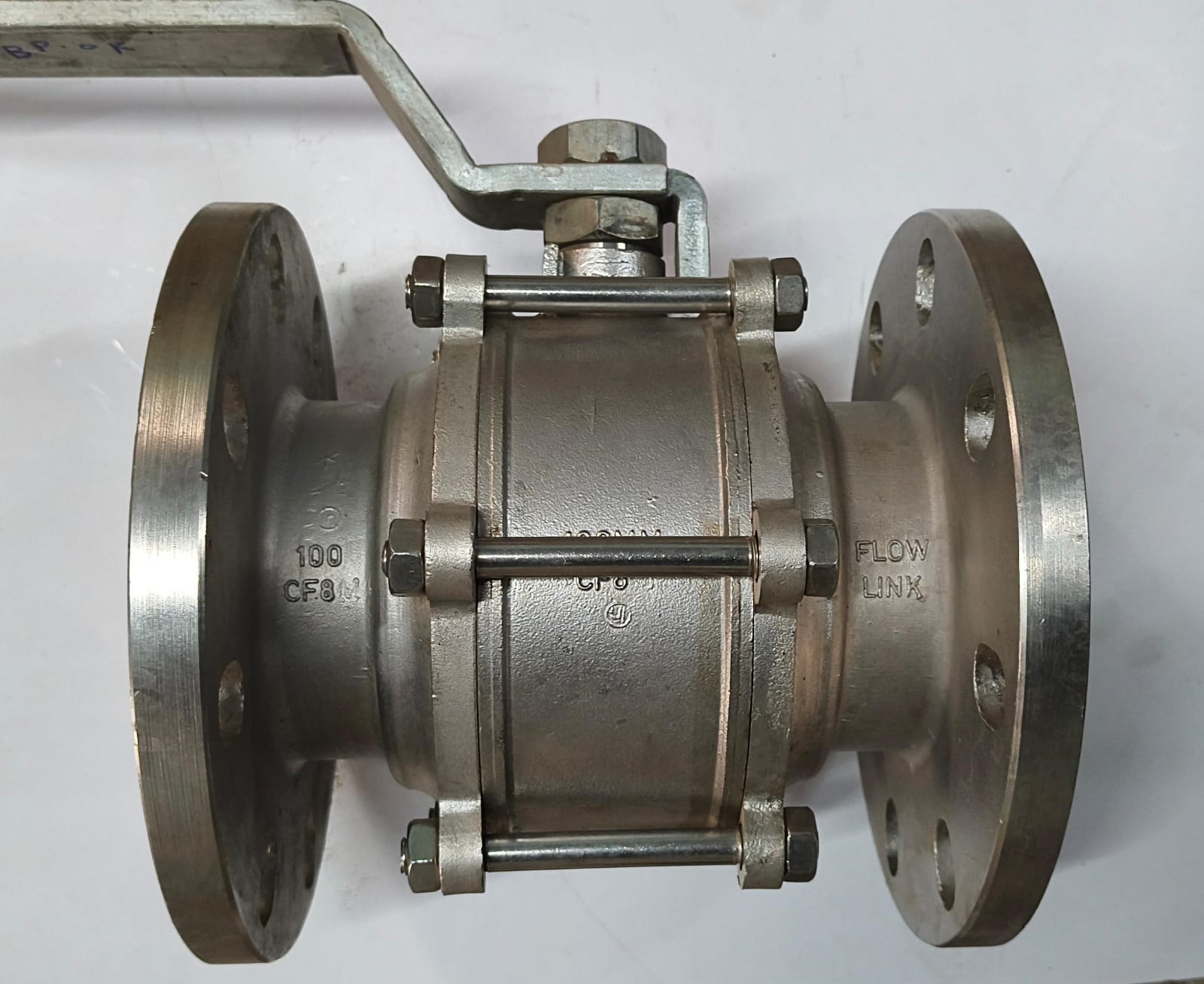

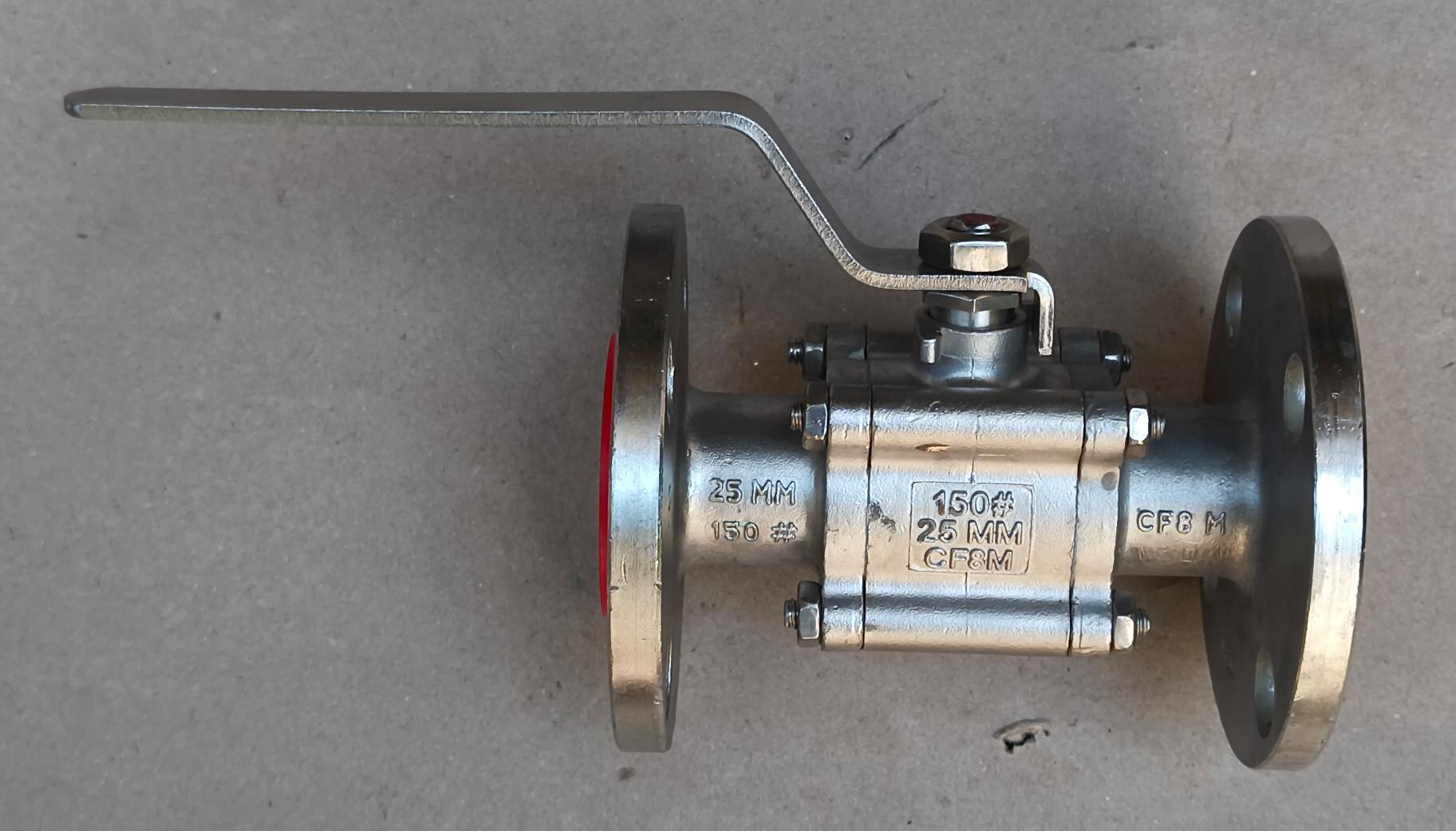

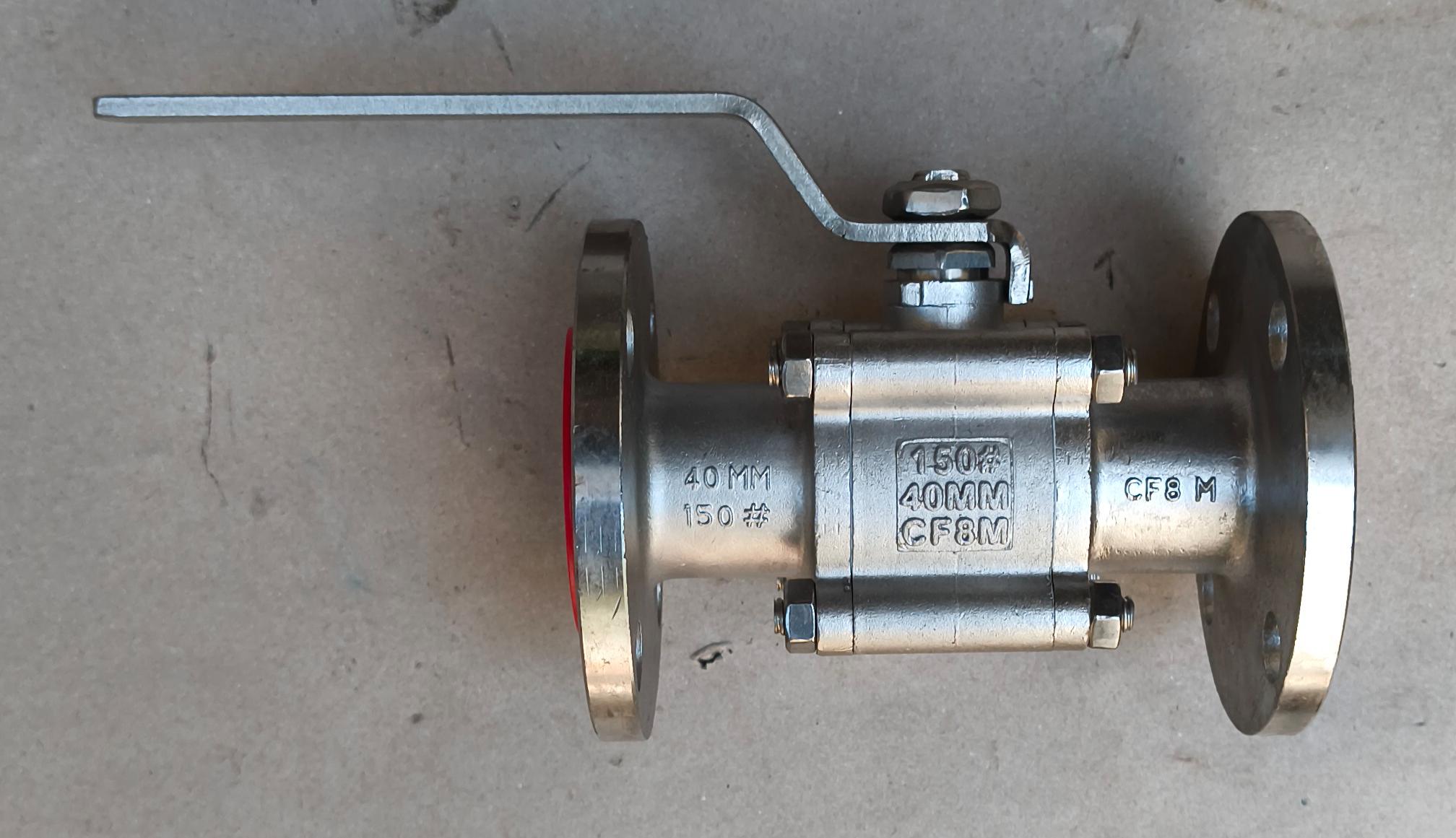

Three-piece flanged construction: the centre body can be serviced without disturbing the end pieces. Available in stainless steel or C.I. body, 15 mm to 200 mm.

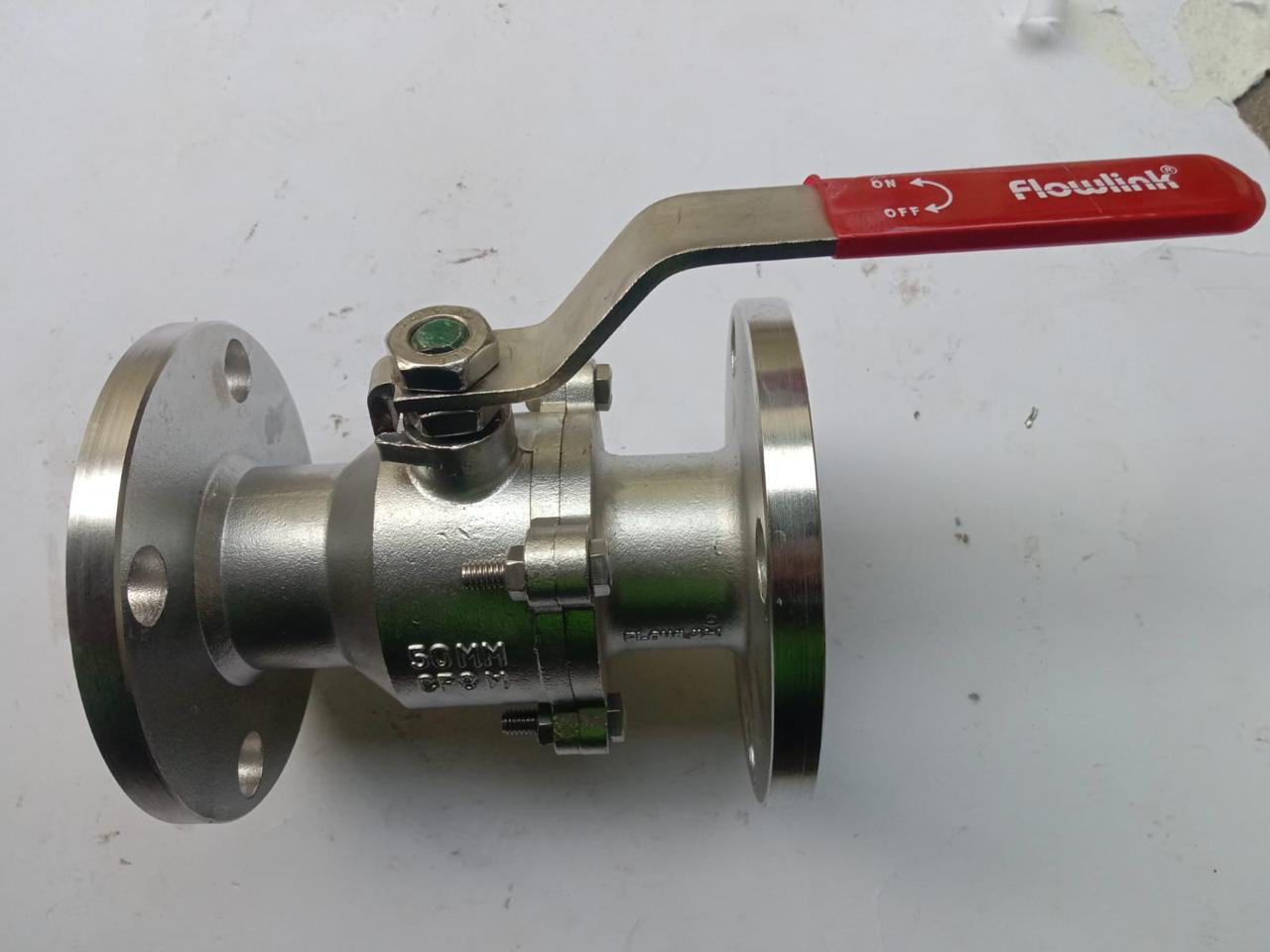

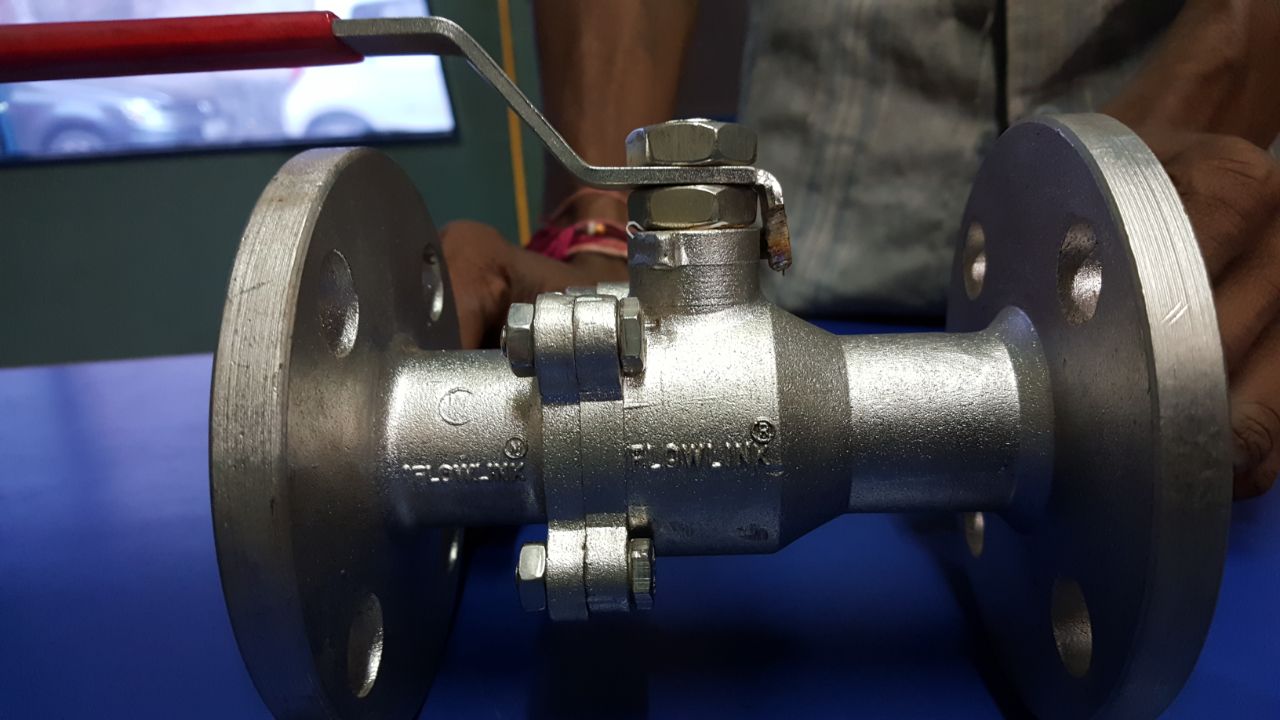

Bolt-in flanged isolation valve, ASA 150# / 300#.

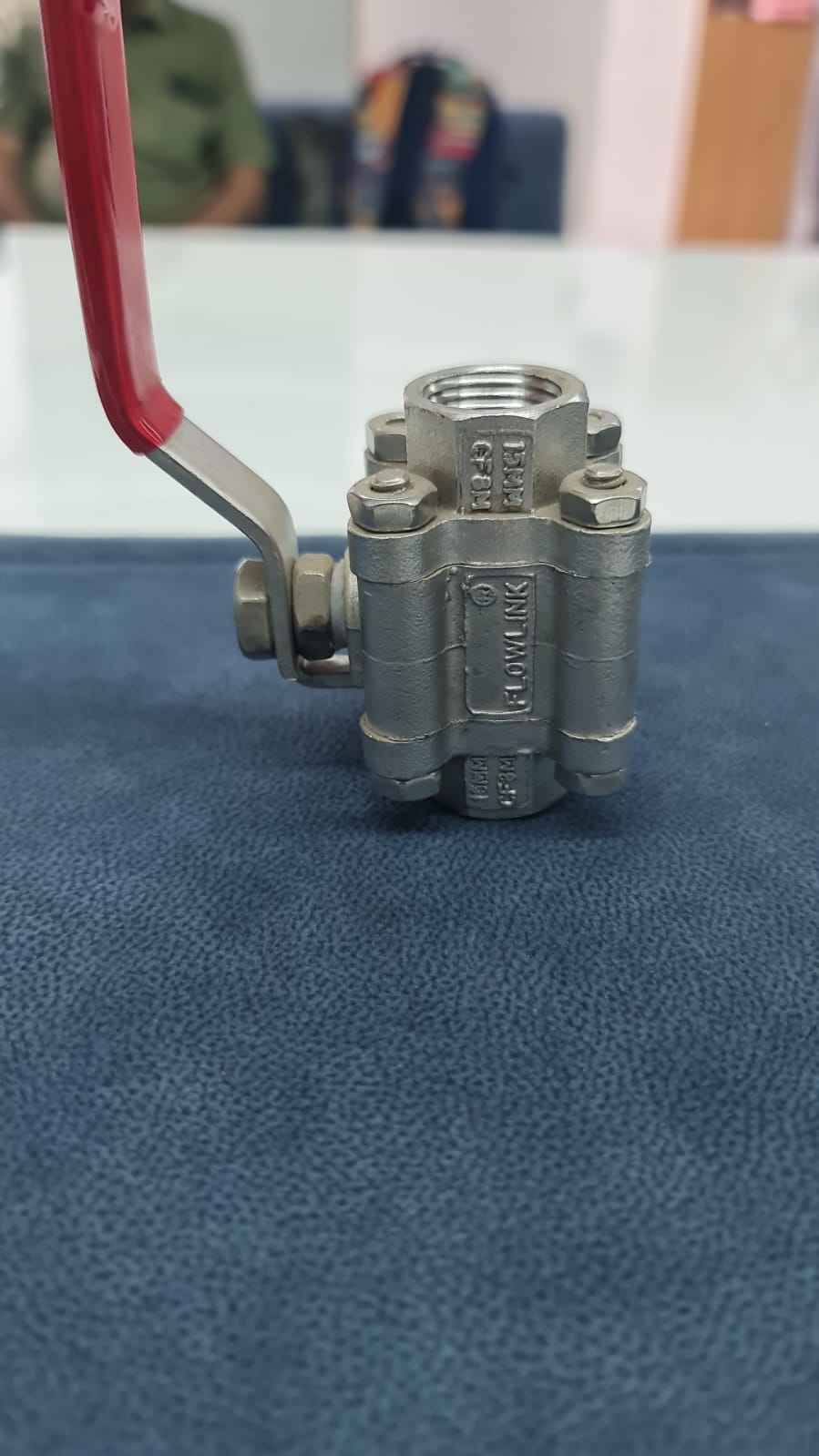

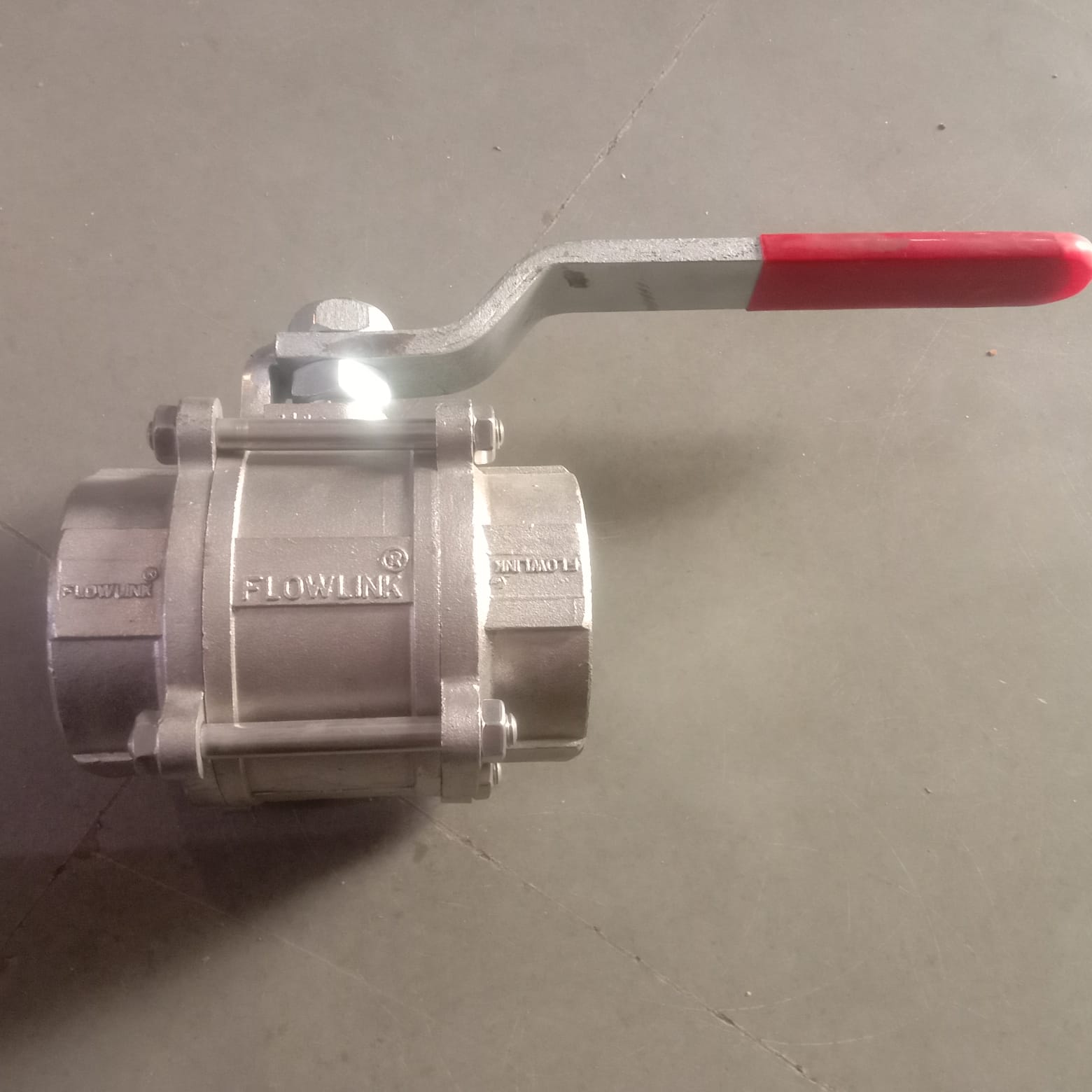

Three-piece body with screwed ends for small-bore lines.

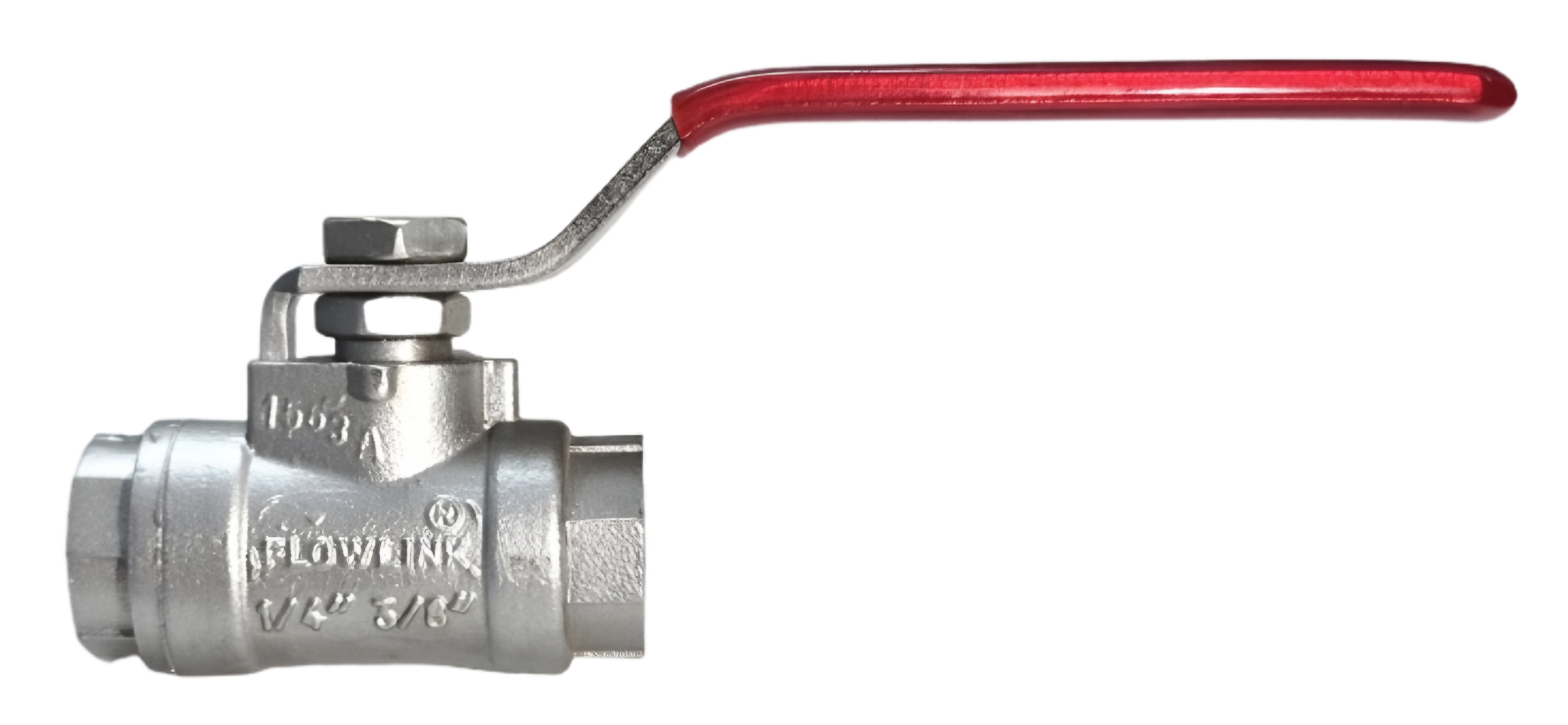

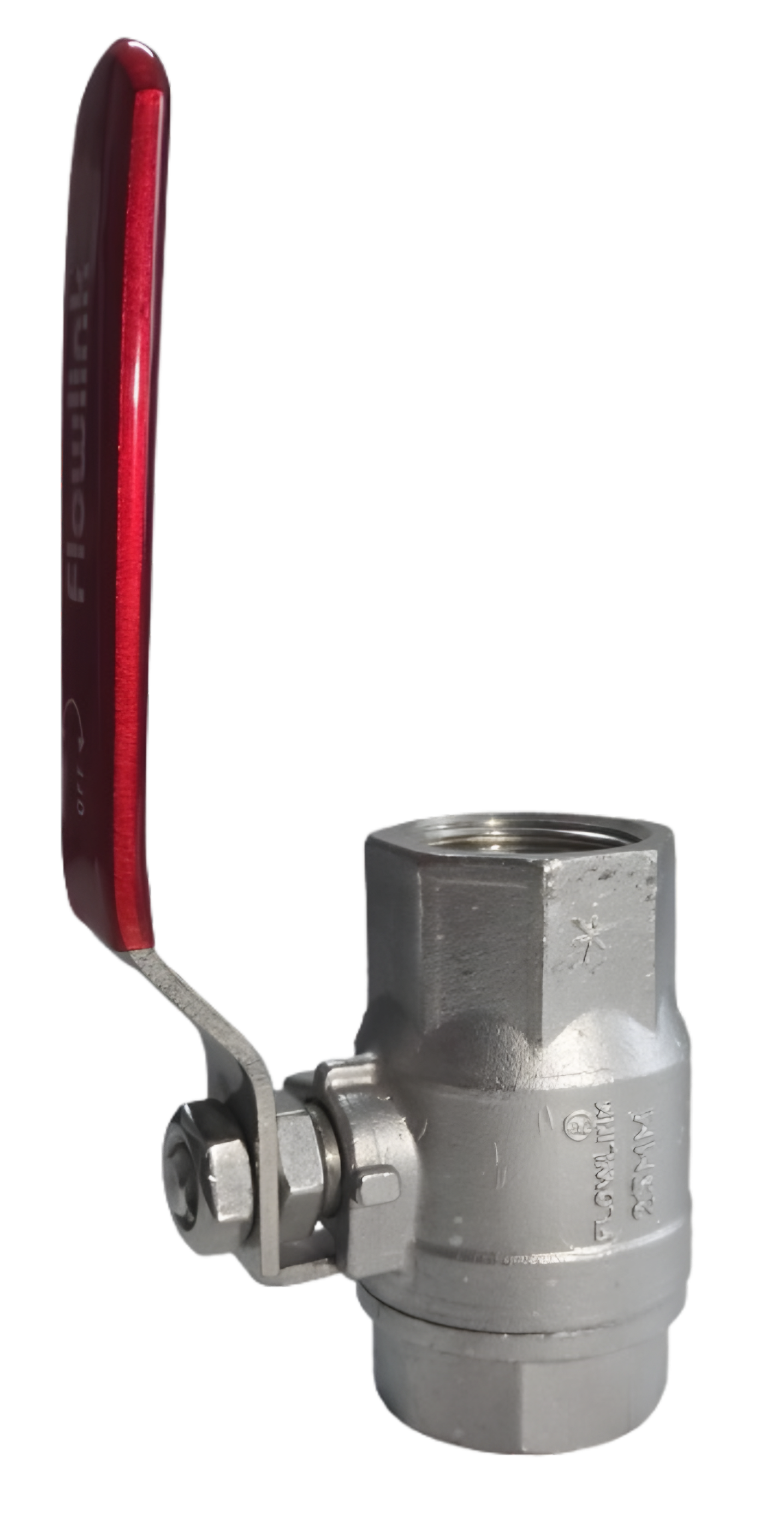

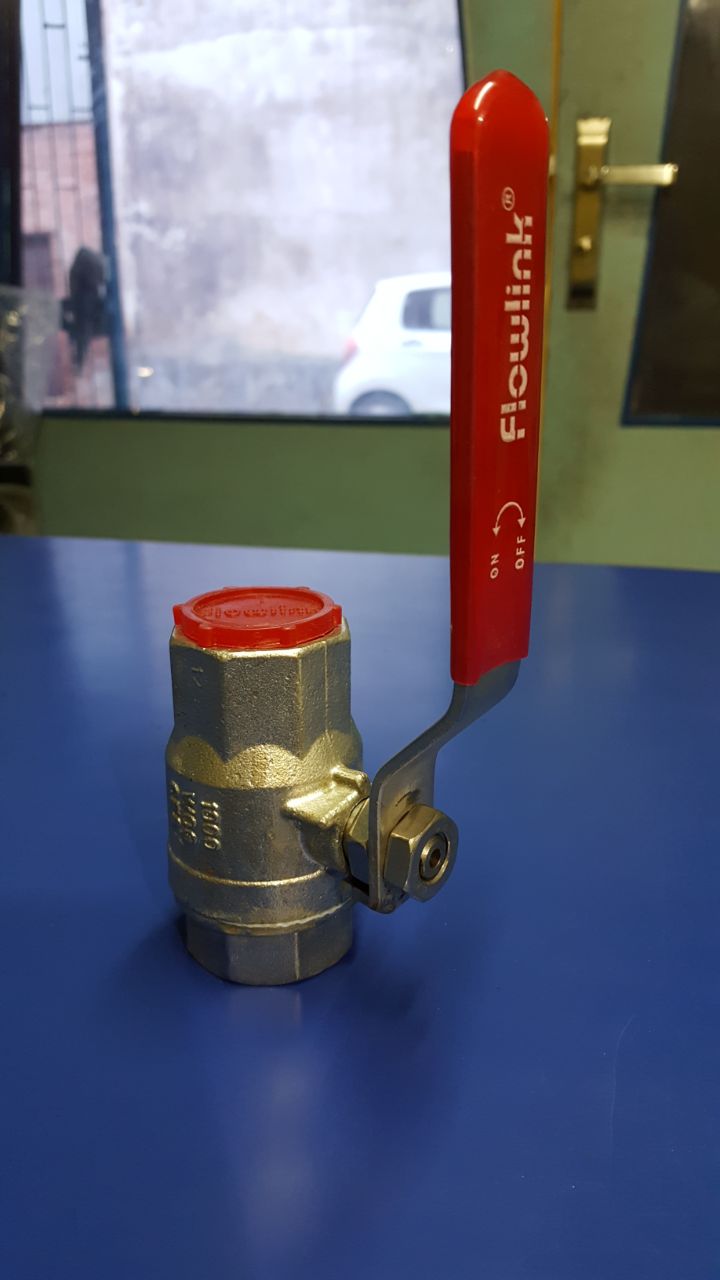

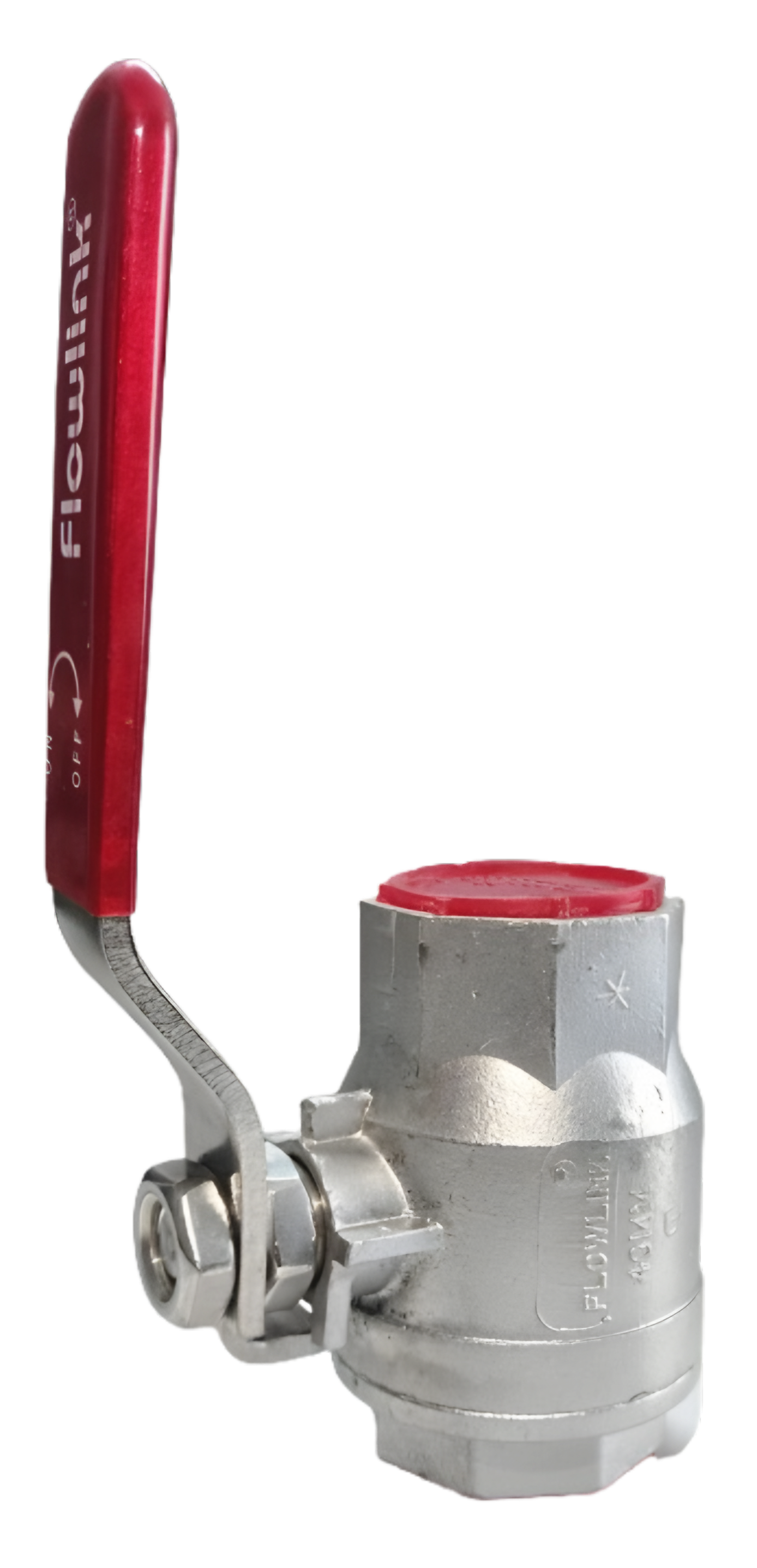

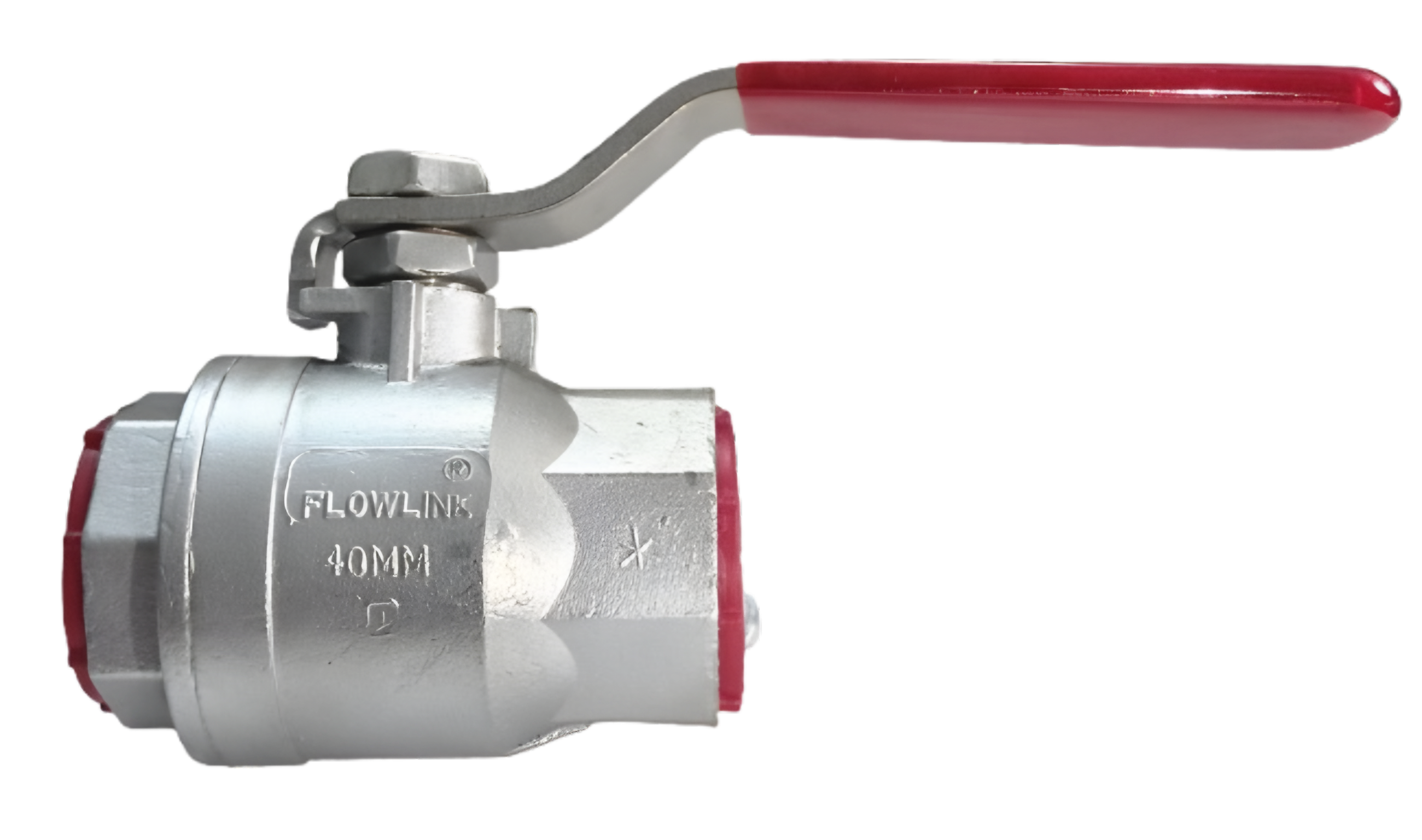

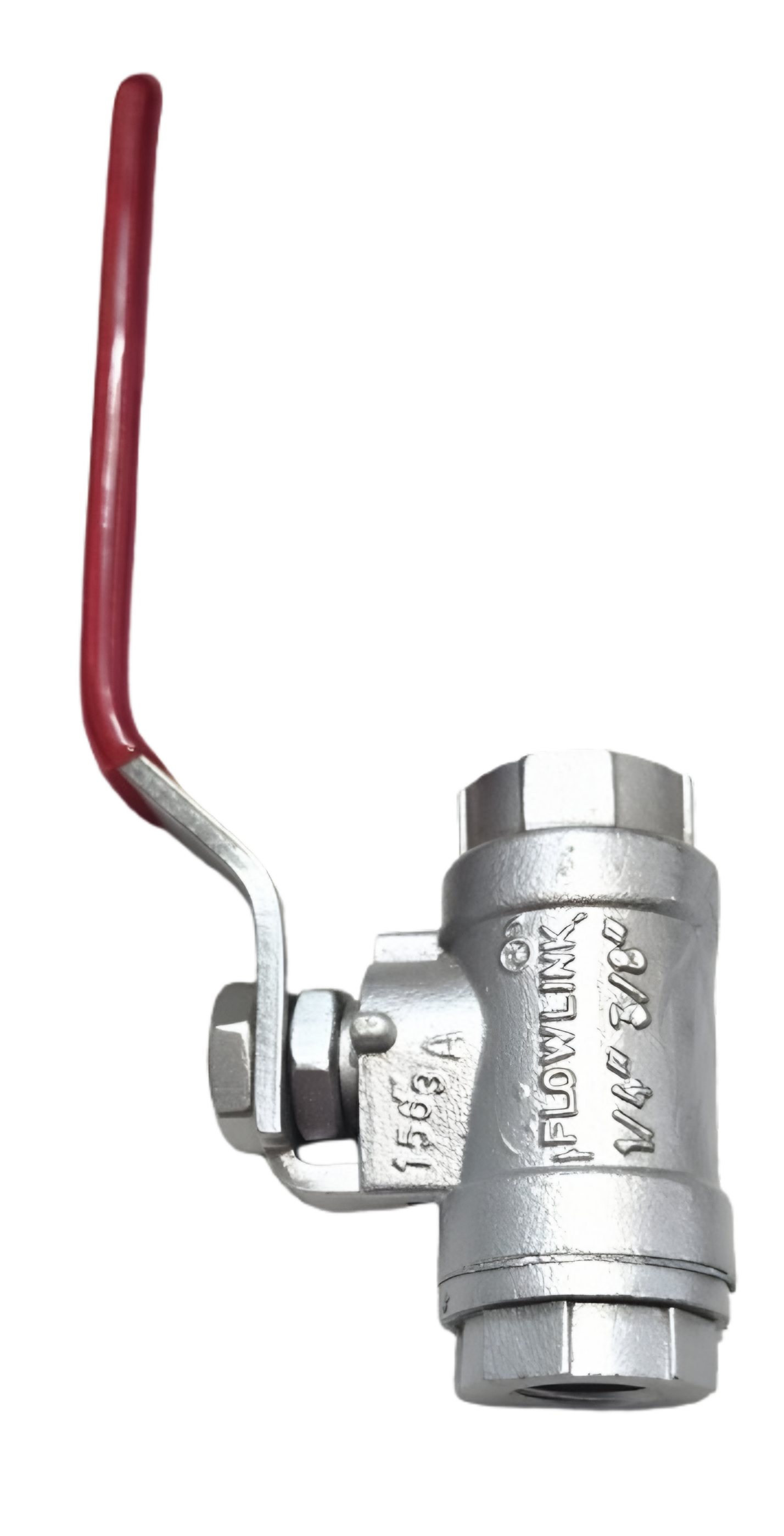

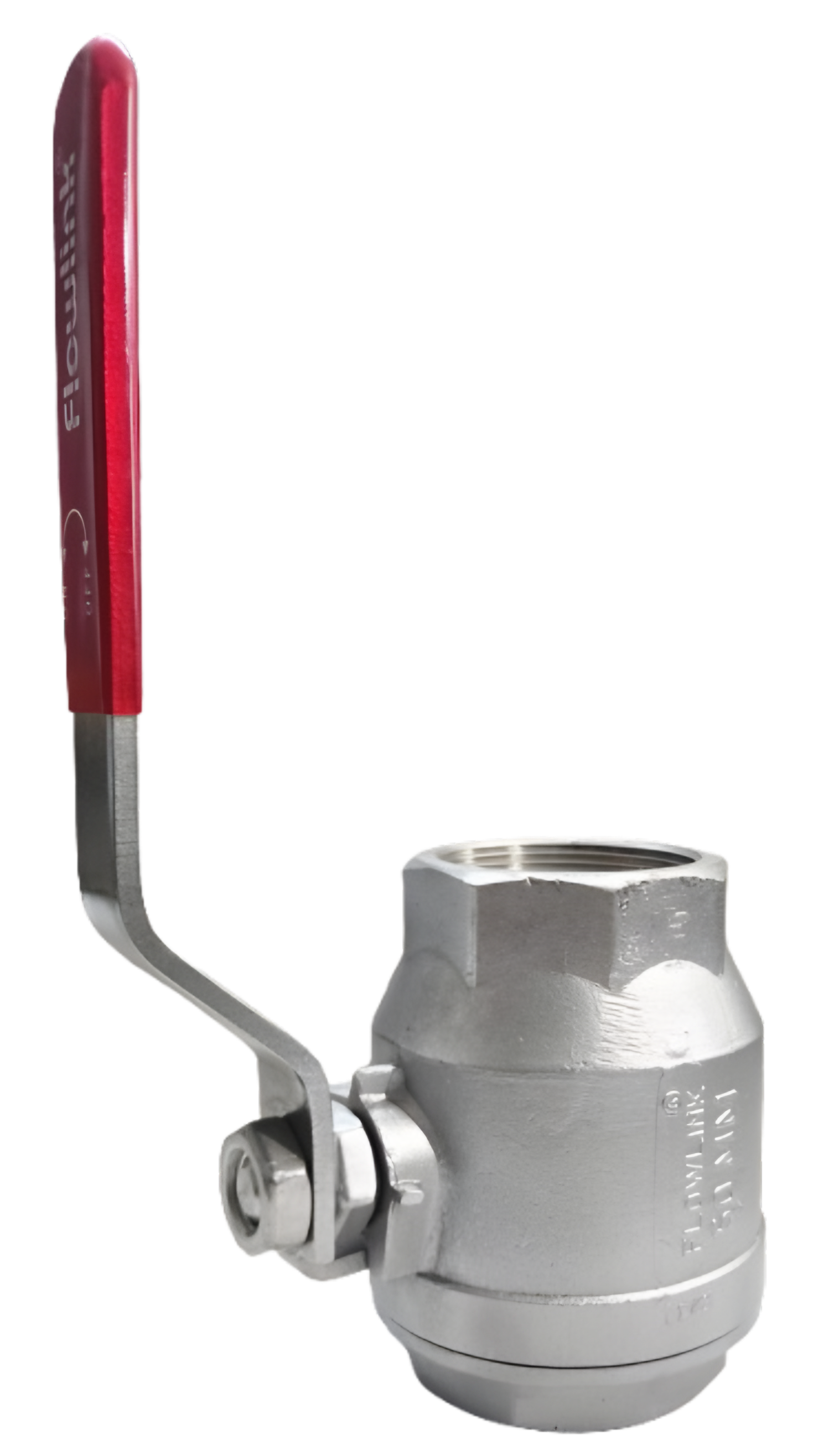

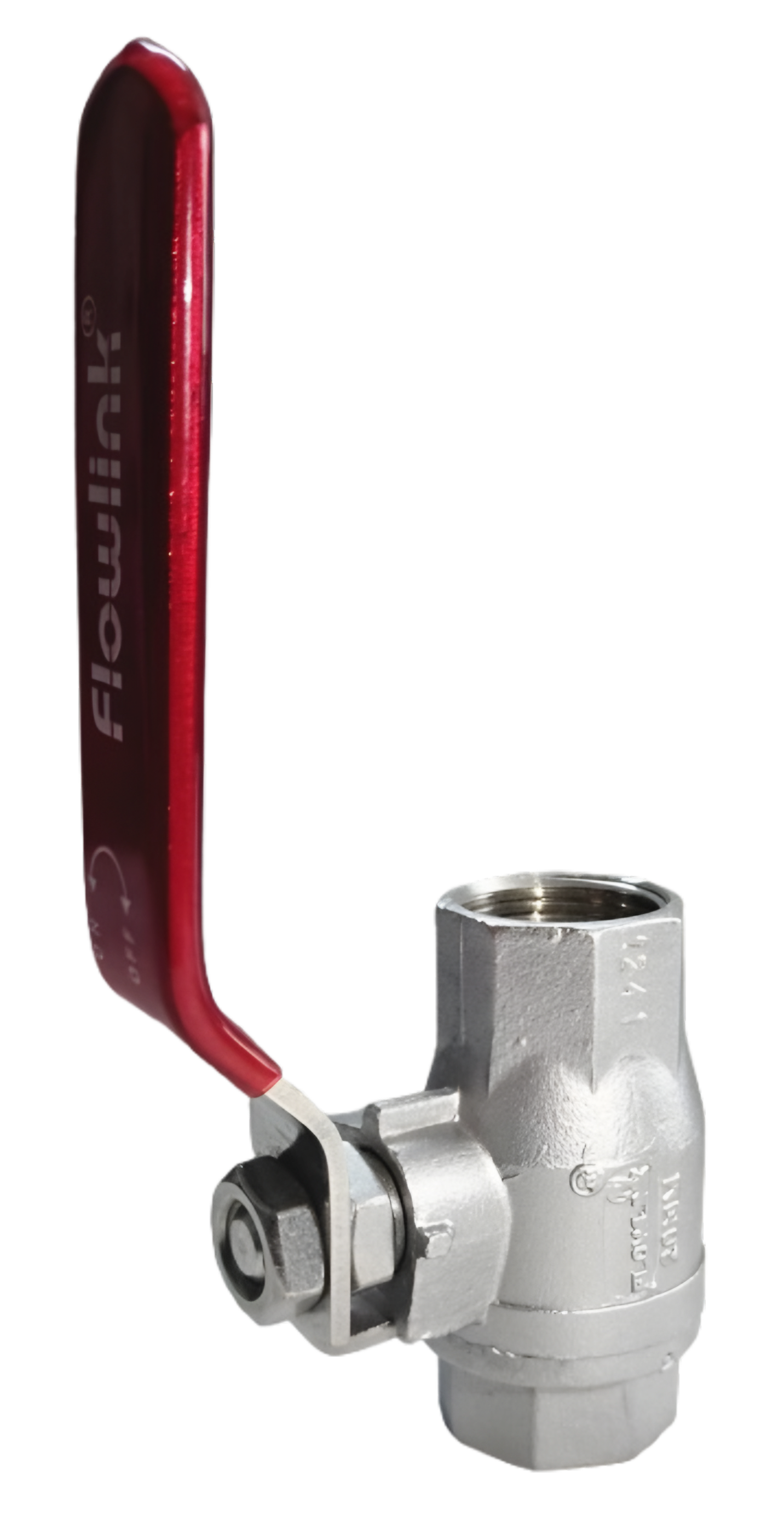

One-piece screwed body for compact, small-bore isolation.

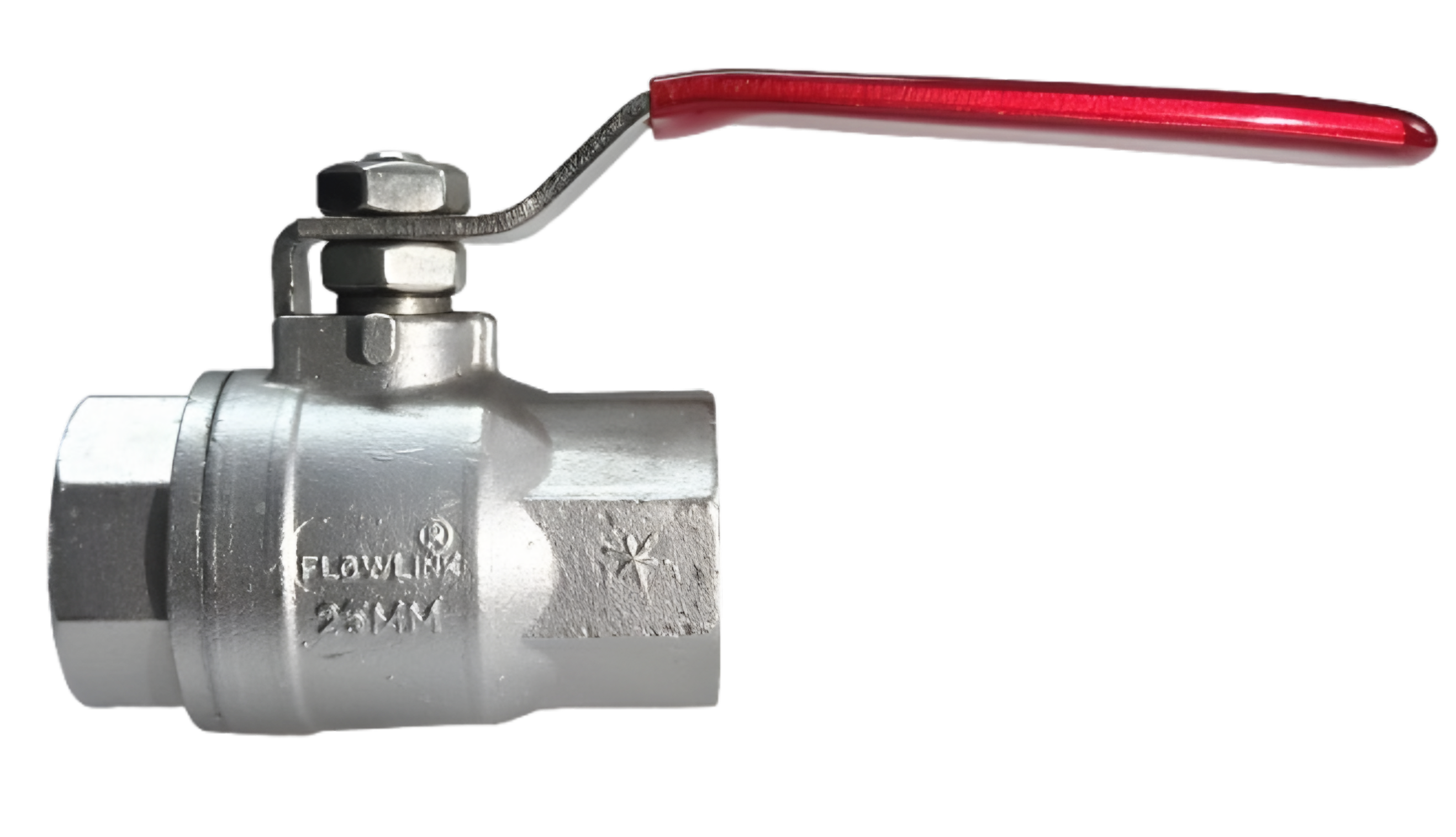

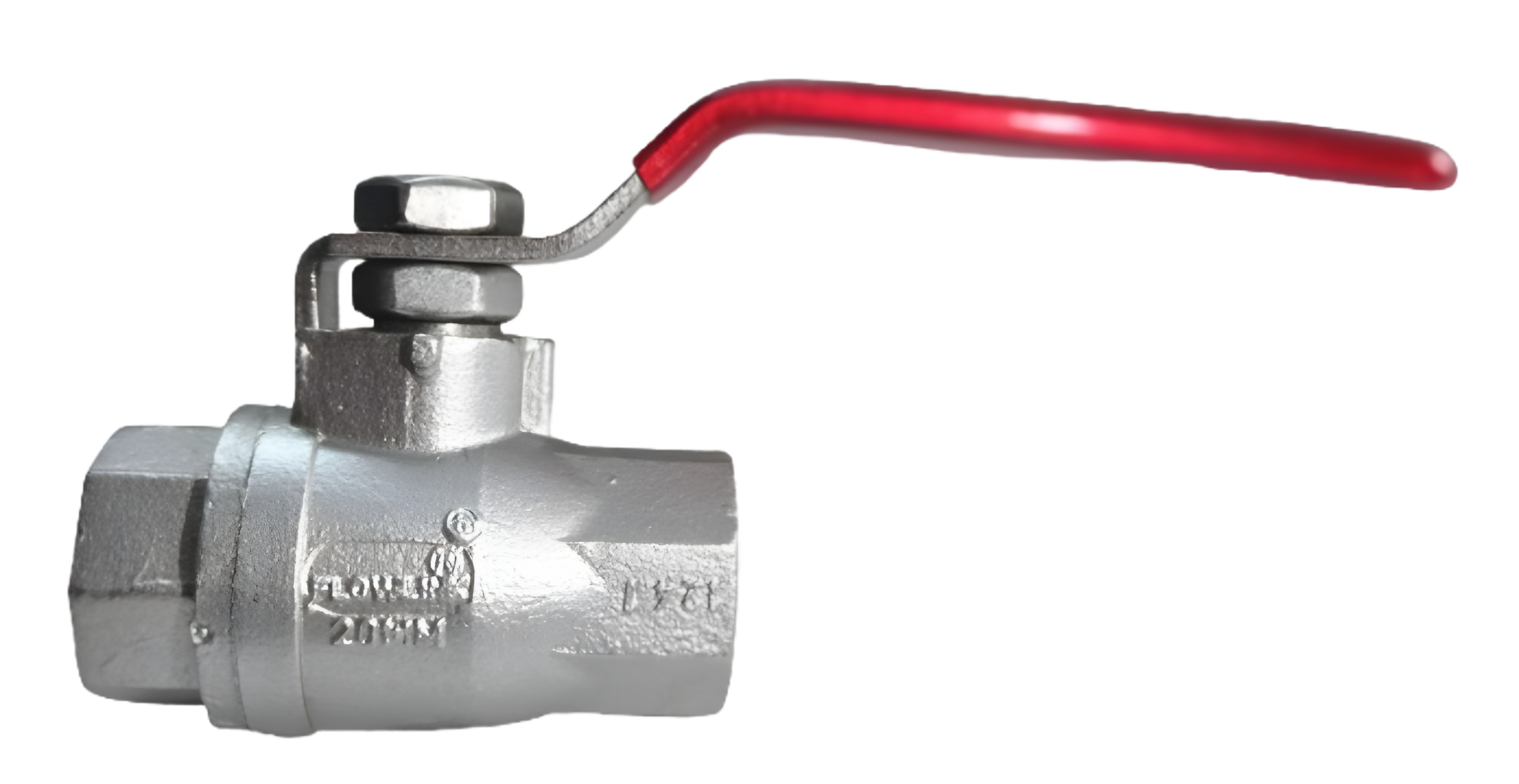

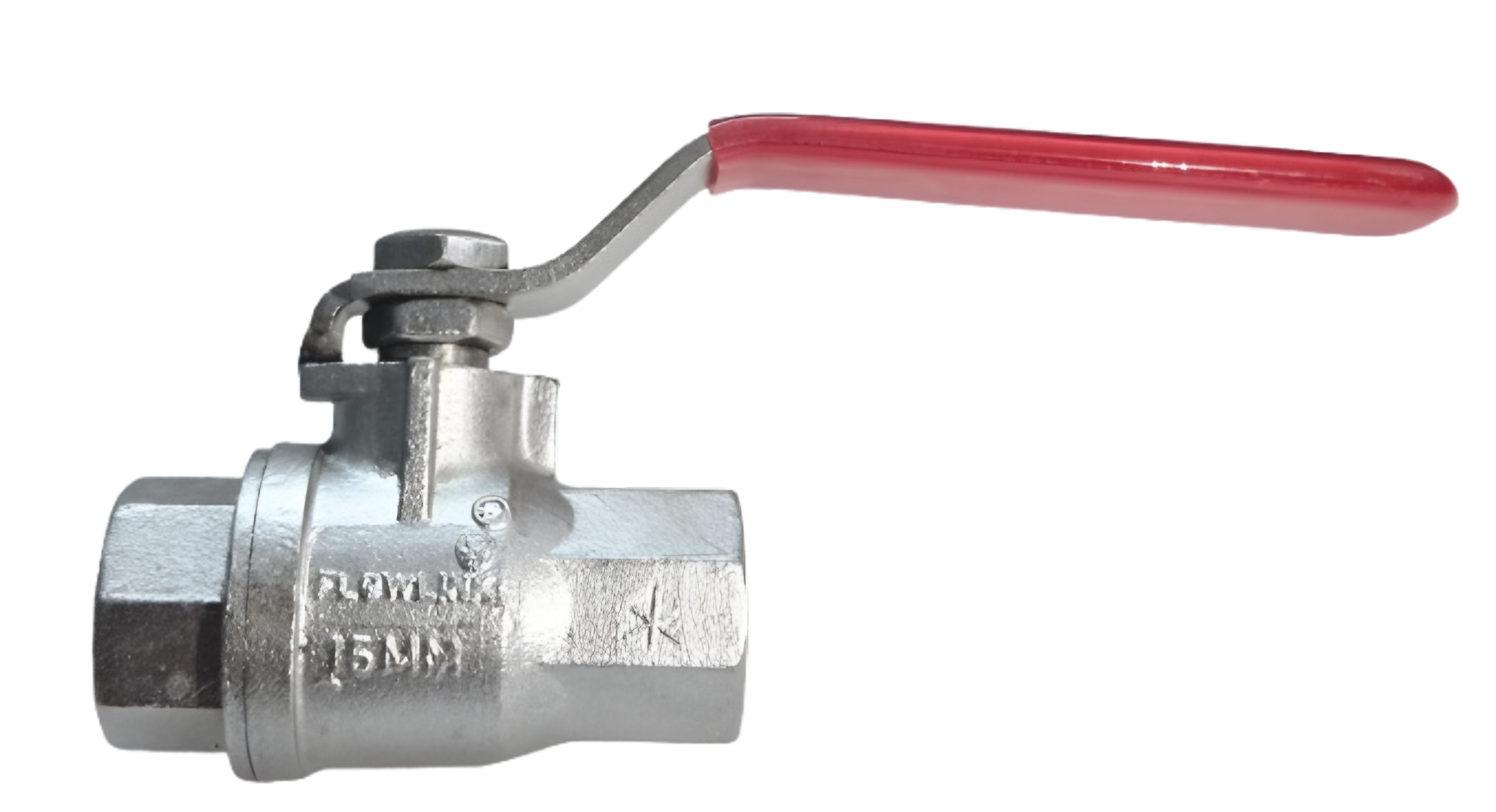

Threaded quarter-turn valve in SS or MS body.
Choose by end connection and line size first, then body material and pressure class.
| Type | End connection | Nominal size | Pressure class | Body | Ball | Stem | Seat | Operation |
|---|---|---|---|---|---|---|---|---|
| Single Piece Ball Valve | Screwed | 8 mm to 100 mm | ASA 150 | IC / CI | SS 202 / 304 / 316 | SS 202 / 304 / 316 | PTFE | Lever |

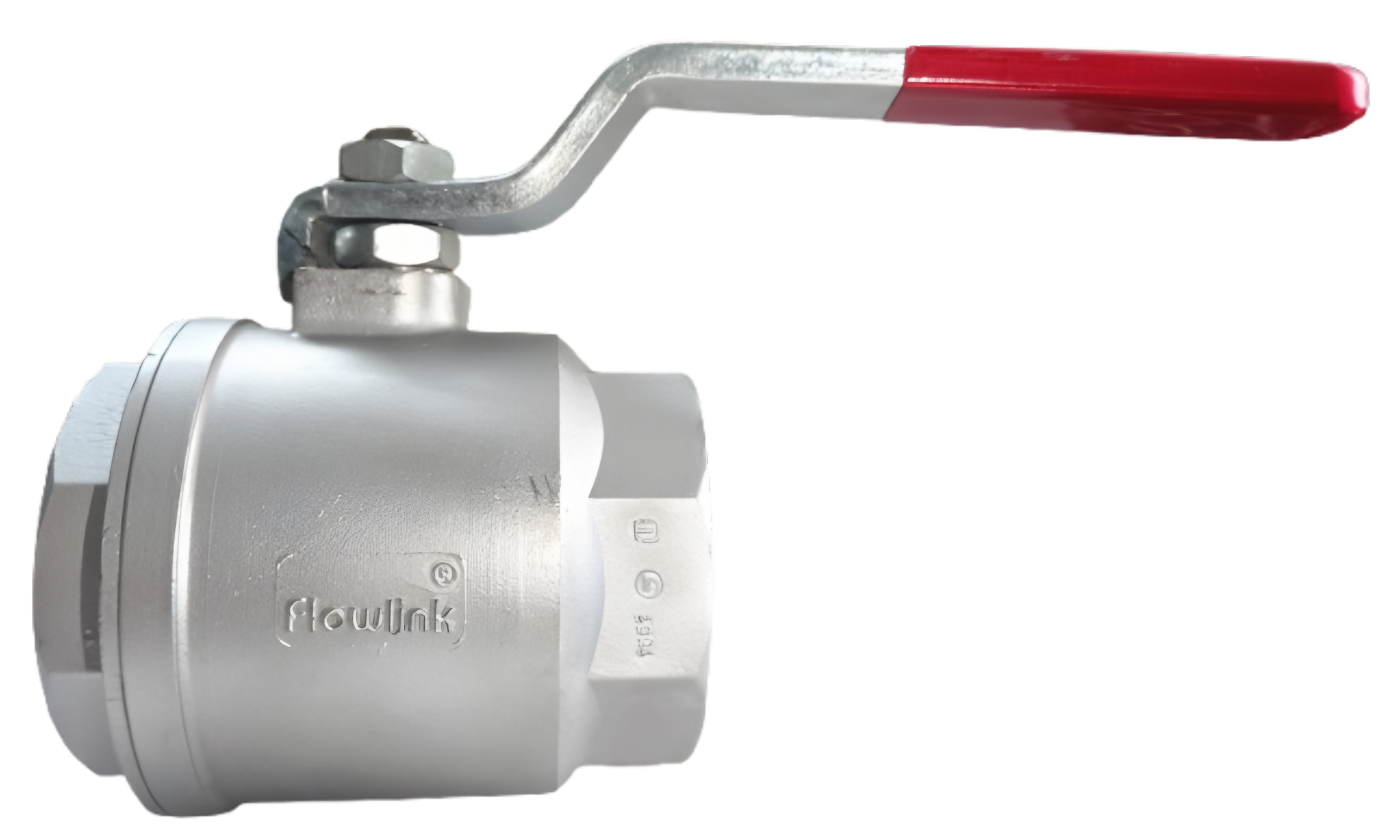

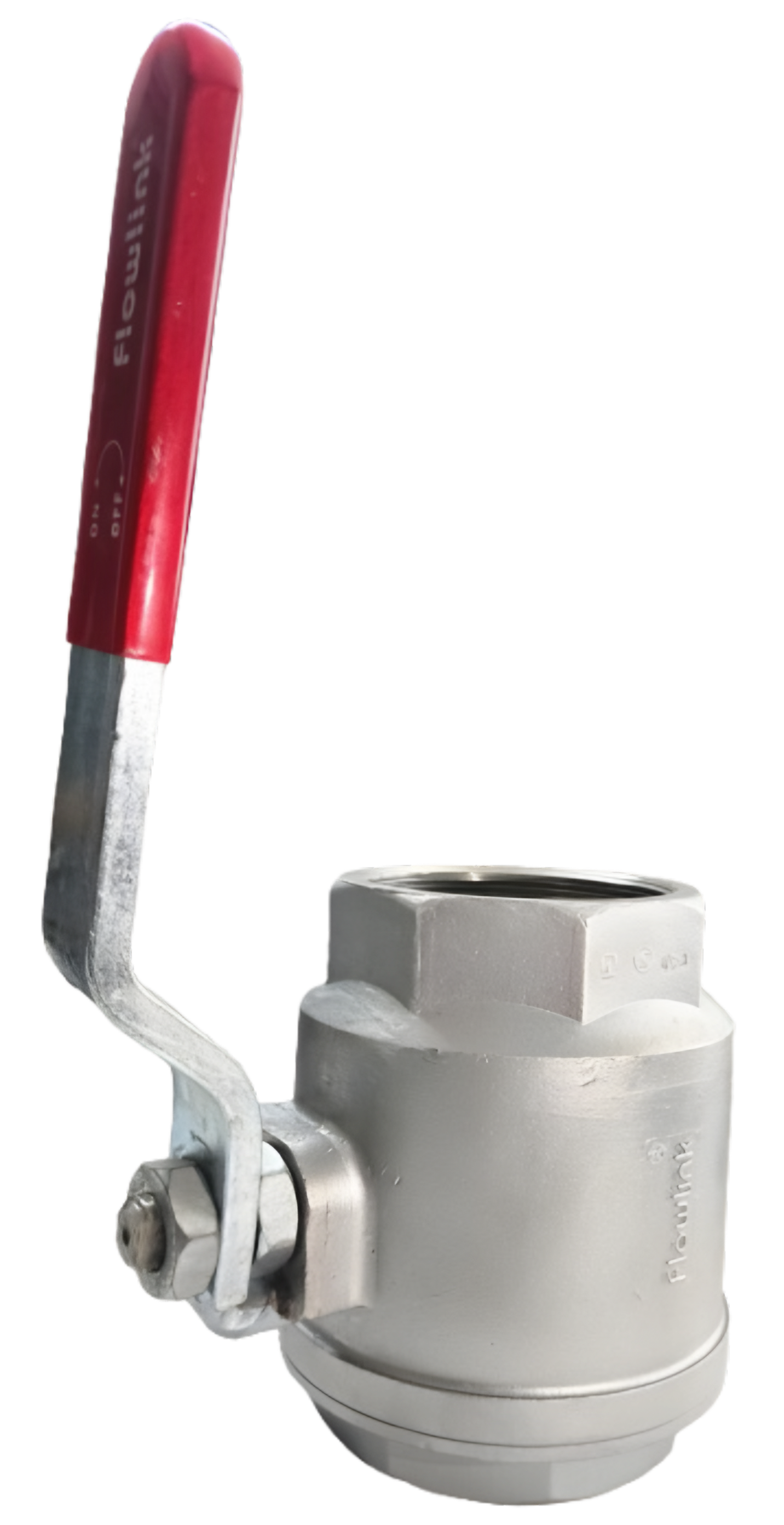

| Screwed Ball Valve | Screwed | 15 mm to 100 mm | ASA 150 | SS / MS | SS 202 / 304 | SS 202 / 304 | PTFE | Lever |
| Two Piece Flanged Ball Valve | Flanged | 25 mm to 200 mm | ASA 150# / 300# | I.C. 304 / 316, C.I., WCB, M.S. | SS 202 / 304 / 316 | SS 202 / 304 / 316 | PTFE | Lever |
| Three Piece Flanged Ball Valve | Flanged | 15 mm to 200 mm | ASA 150# / 300# | I.C. 304 / 316, C.I., WCB, M.S. | SS 202 / 304 / 316 | SS 202 / 304 / 316 | PTFE | Lever |
| Three Piece Screwed Ball Valve | Screwed | 15 mm to 80 mm | ASA 150# | IC / M.S. / WCB | SS 202 / 304 / 316 | SS 202 / 304 / 316 | PTFE | Lever |
Tell us the product, size and quantity. On the next screen you can add pressure rating, material, end connection and attach your drawing or BOM.
